Specification

Dimensions

Next
  • kia-gl3-22my-dimensions-front-w kia-gl3-22my-dimensions-front-t kia-gl3-22my-dimensions-front-m
  • kia-gl3-22my-dimensions-back-w kia-gl3-22my-dimensions-back-t kia-gl3-22my-dimensions-back-m
  • kia-gl3-22my-dimensions-side-w kia-gl3-22my-dimensions-side-t kia-gl3-22my-dimensions-side-m
Prev
Dimensions (mm)
table fix area
Overall length
Overall width
Overall height
Wheelbase
Wheel tread (front/rear)
Overhang (front/rear)
Leg room
Head room
Shoulder room
Trunk volume (liter, VDA)
Minimum ground clearance

5,015
1,875
1,455
2,895
1,621/1,627
950/1,170
1,170/930
1,015/960 (*978/955)
*With panoramic sunroof
1,485/1,440
510
145 (*155)
*With high suspension

Wheel

Next

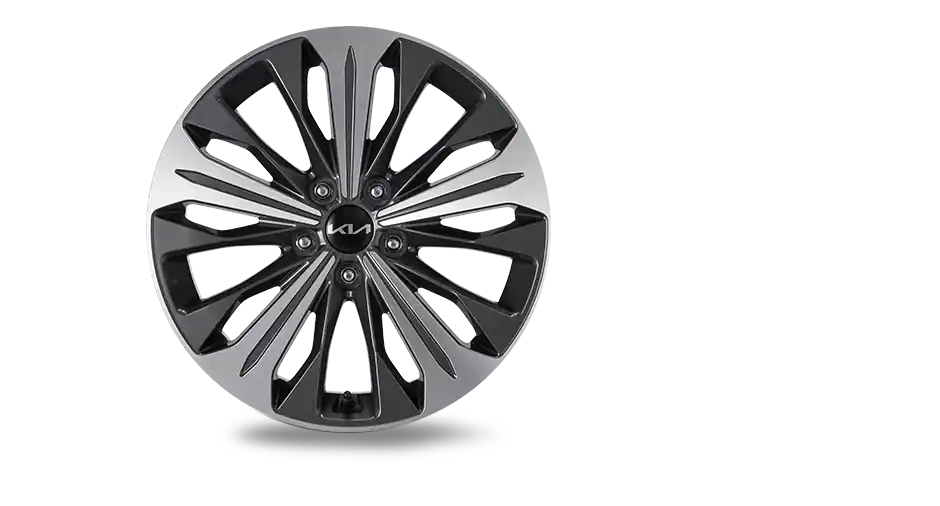

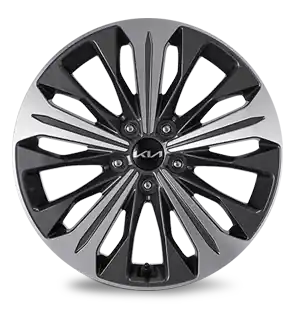

  • 18-inch alloy wheels

    18-inch alloy wheels

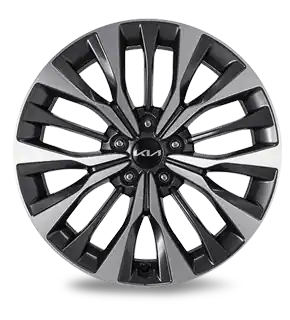

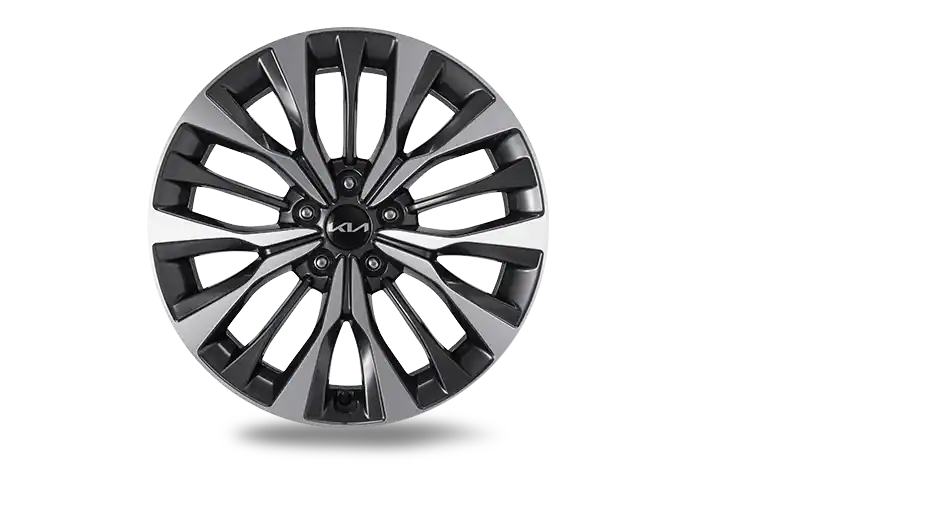

  • 19-inch alloy wheels

    19-inch alloy wheels
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
